Project Details

Oak Park Library

Location: Oak Park , IL
Completion Date: 2003
Size: 12,000 sqft.
Market Sector: Civic / Government
New Construction: Yes

Project Team

Owner: City of Oak Park
Architect: Nagle Hartray Danker Kagen McKay
Landscape Designer: Carol Yetken
Contractor: The Meyne Company

Product Info

Garden Roof
Garden Roof Type: Extensive
Garden Roof Size: 12,000 sqft.
Products: LiteTop

Additional Details

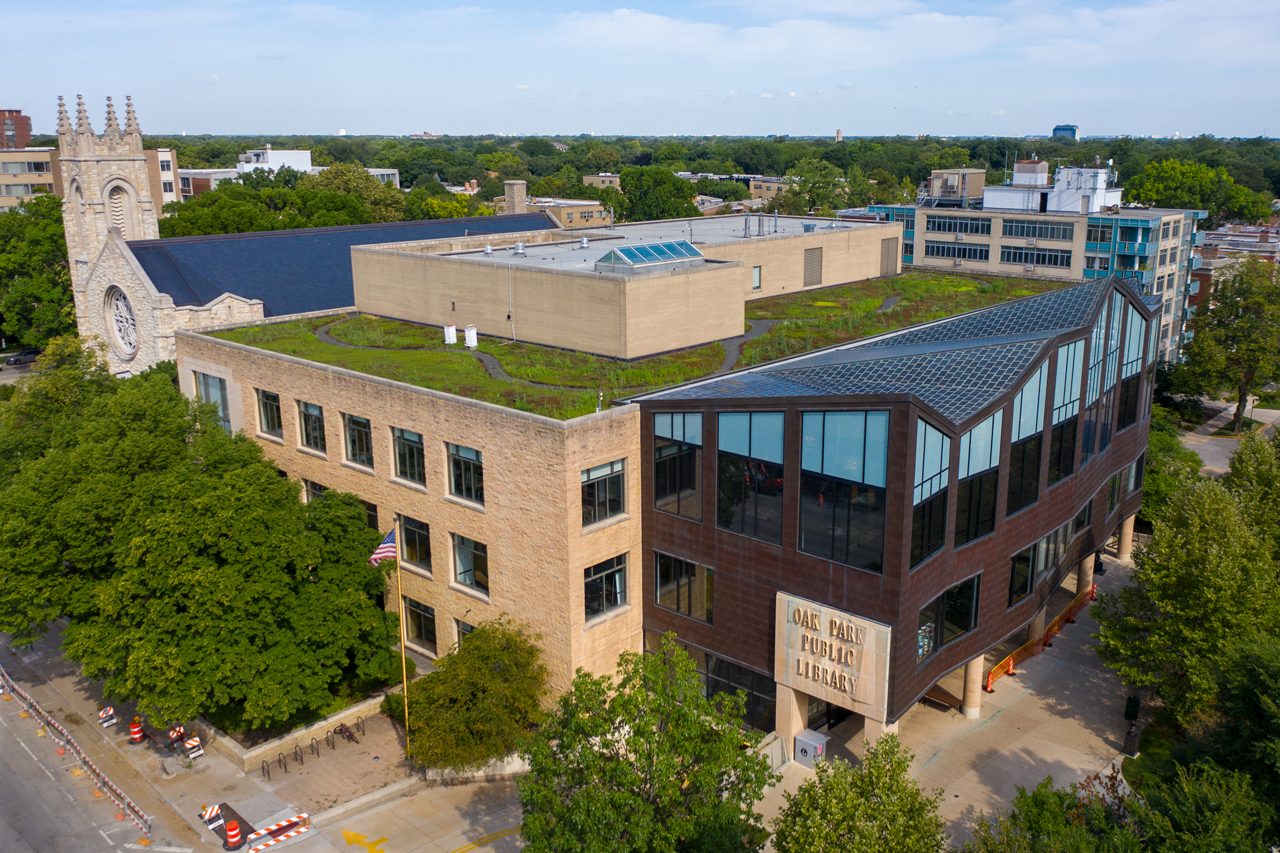

Oak Park, nine miles west of downtown Chicago, is best known for its Prairie Style houses designed by Frank Lloyd Wright and for one of Wright's most famous contributions to modern architecture, Unity Temple. Across the street from Unity Temple stands the Oak Park Library, a new important civic structure with an innovative design built upon the strong architectural heritage of Oak Park.

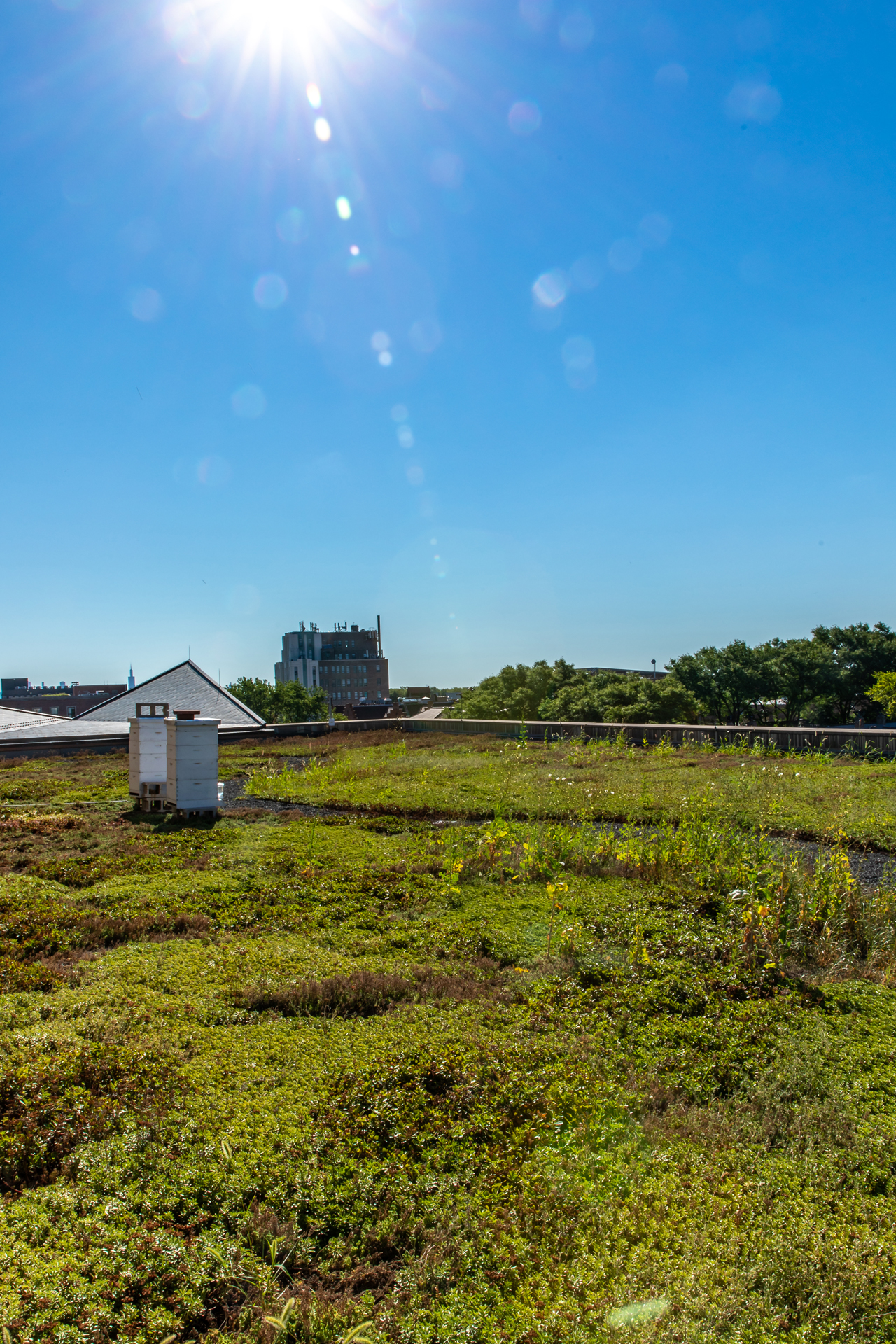

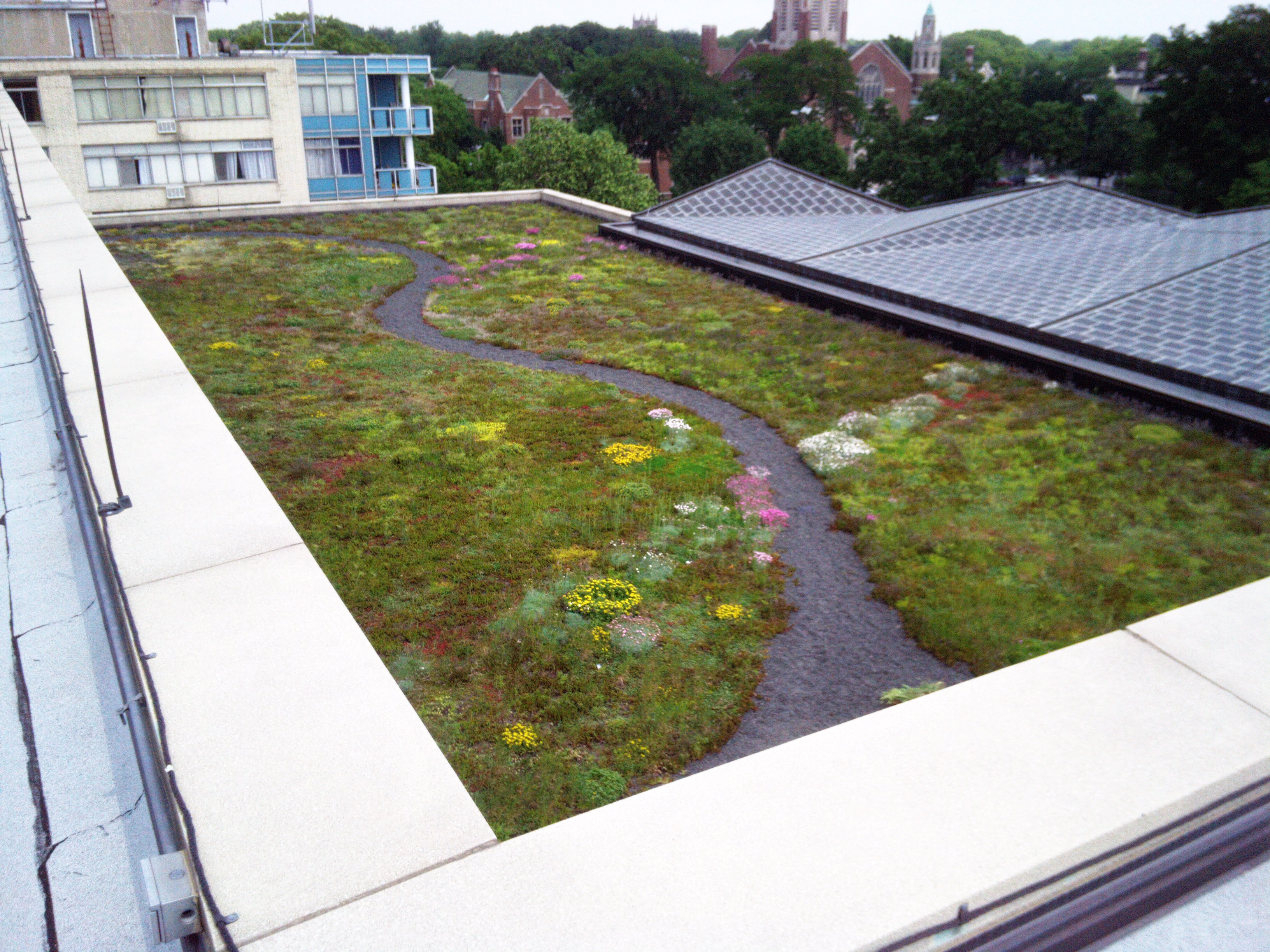

A major design goal for the library was to minimize the impact on the environment through the use of sustainable building materials and systems. Towards this goal, designers decided upon an extensive Garden Roof®, with a 4-inch soil mix and low-growing hardy plants to create a vegetated rooftop that can hold up to the harsh environment without using irrigation. Thanks to the relatively low weight of Hydrotech's Garden Roof Assembly, no additional roof support was necessary.

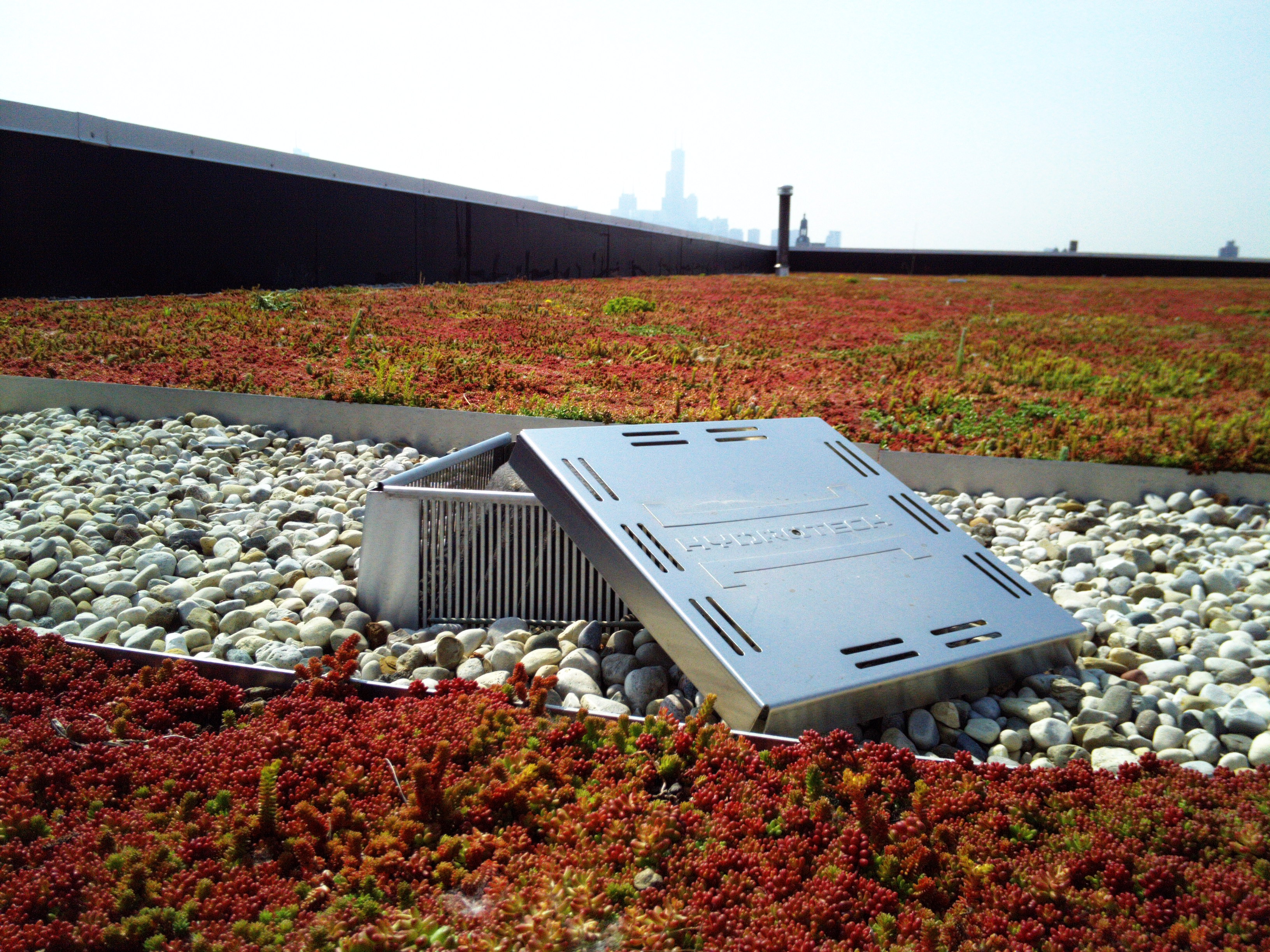

The Garden Roof Assembly incorporates Monolithic Membrane 6125®-EV waterproofing, a high performance hot-applied rubberized asphalt, together with drainage/water retention elements, root barrier, insulation, and an engineered lightweight growing medium. The assembly’s unique Floradrain® component, made of 100 percent recycled polyethylene, allows for moisture retention within the shallow soil profile while also providing for proper drainage of excess water.

Keeping with the building's sustainability goals, Oak Park Library's Garden Roof requires minimal maintenance, generates energy efficiency benefits, will extend the longevity of the roof's waterproofing membrane, and reduces annual storm water runoff by an estimated 50 to 75 percent. The roof will also contribute to better air quality in this architecturally historic neighborhood.
